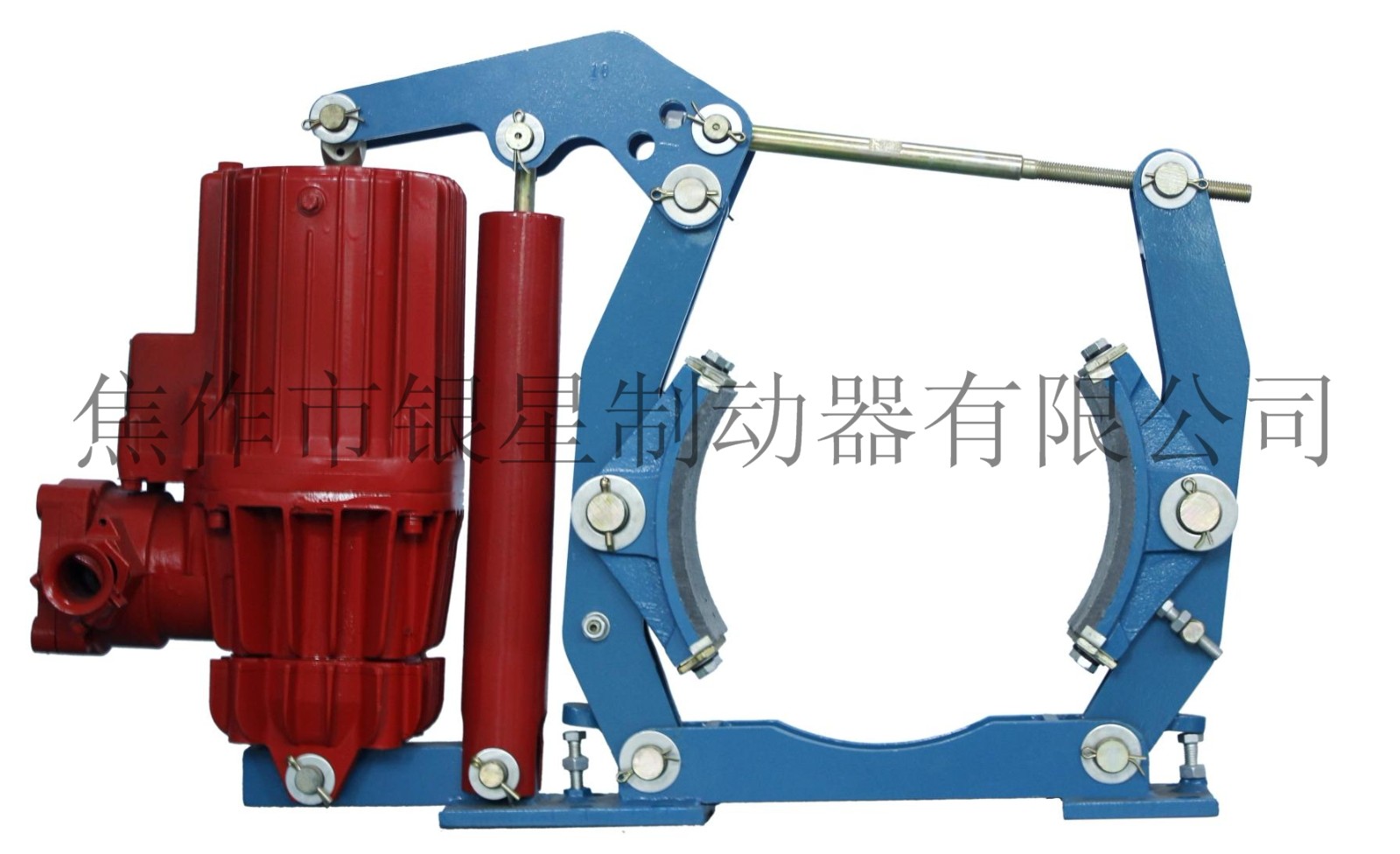

Overview: BYWZ5 power hydraulic block brake is mainly used in lifting, transportation, metallurgy, mine, port, building and other mechanical driving mechanical brake. The product adopts the Ed series propeller introduced by German technology as the driving device. It has the characteristics of multi azimuth installation, high operation frequency, stable braking, adjustable braking torque, convenient and rapid friction replacement, long life, no noise and so on. The operation times per hour is 2000 times, electrical insulation level is F, protection grade. For IP65, connection size, brake torque parameter GB6333-86 standard (equivalent to German DIN15435-85 standard). The technical conditions are in conformity with the JB6406.2-92 standard.

　　Conditions of use: 1, environment temperature: -20 degrees C degrees C+50. 2, the relative humidity of air is not more than 90%. 3, there is no danger of explosion, and there is no place in the medium to corrode metals and destroy insulation. (our company can provide explosion-proof and anticorrosive products). 4, generally used for three-phase AC power supply 50HZ, 380V (production of 60HZ or different voltage according to needs), please order current events first. 5, installation altitude is in line with GB755-87 and German VDE0530 standard.

　　Below -20 degrees C, the working fluid of the propeller is replaced with YH-10 aviation hydraulic oil or the heater is required, with reference to the Ed driver's manual.
